Short Path Distillation Kit

Capacity varies from 2L to 20L, to meet your different lab demands.


Boost Your Distillation Business

Come with a small size but powerful capability. High efficiency to make the distillation with a steadier setup and stainless steel cold trap. This is a great choice to process distillation in a lab.

New Launch

SPD - 20S

  • Boiling flask: 20L

  • Heating temperature: ambient to 300℃

  • Cooling temperature: -5℃ ~ 85℃

  • Vacuum pump: around 5 Pa(optional diffusion pump to 0.1 Pa)

  • Vessel material: 3.3 borosilicate glass

  • Insulation jacket

  • Cold trap material: SS 304(optional SS316L)


We have upgraded the glass cold trap to a brand new stainless steel cold trap now.

The glass cold trap uses one layer for the chilling effect, while stainless steel one adopts two layers to make the fluids chill at a double rate by largely increasing the condensing area.

To realize that, the stainless steel one employs dry ice or stainless steel chilling coil(with a chiller), contributing to a drastically elevated efficiency.


Glass cold trap


Stainless steel cold trap


Distillation Head

  • Newly re-designed distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient evaporation.



Receiving Flask

  • Using receiving flask with valves instead of 1-to-1 or 1-to-3 flask, which guarantees the vacuum environment and realizes continuous discharge.

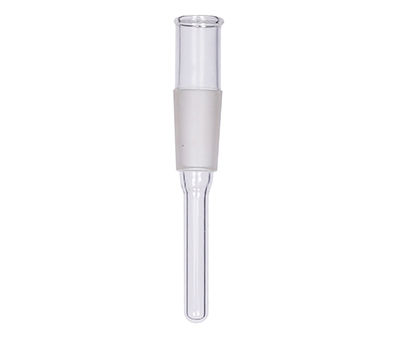

Thermowell

  • Using thermowell instead of screw adapter, ensuring no gas leakage.

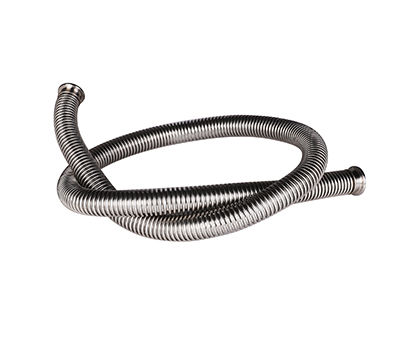

Stainless Steel Bellows and Clamps

  • Using KF25 flange and flexible stainless steel vacuum bellows instead of barb adapter and silicone hose, for a better vacuum environment.

  • All calmps are made of stainless steel

Short Path Distillation Solutions


SPD - 02N

  • Boiling flask: 2L

  • Heating temperature: ambient to 300℃

  • Cooling temperature: -5℃ ~ 85℃

  • Vacuum pump: around 5 Pa(optional diffusion pump to 0.1 Pa)

  • Vessel material: 3.3 borosilicate glass


SPD - 05N

  • Boiling flask: 5L

  • Heating temperature: ambient to 300℃

  • Cooling temperature: -5℃ ~ 85℃

  • Vacuum pump: around 5 Pa(optional diffusion pump to 0.1 Pa)

  • Vessel material: 3.3 borosilicate glass


SPD - 10N

  • Boiling flask: 10L

  • Heating temperature: ambient to 300℃

  • Cooling temperature: -5℃ ~ 85℃

  • Vacuum pump: around 5 Pa(optional diffusion pump to 0.1 Pa)

  • Vessel material: 3.3 borosilicate glass

  • Insulation jacket


SPD - 20N

  • Boiling flask: 20L

  • Heating temperature: ambient to 300℃

  • Cooling temperature: -5℃ ~ 85℃

  • Vacuum pump: around 5 Pa(optional diffusion pump to 0.1 Pa)

  • Vessel material: 3.3 borosilicate glass

  • Insulation jacket


Easy Accessibility

This system is almost pre-installed before shipping, leaving very little work for you to do.


Small Footprint

Perfect choice to put in a lab for distillation purposes for its functions and small footprint.

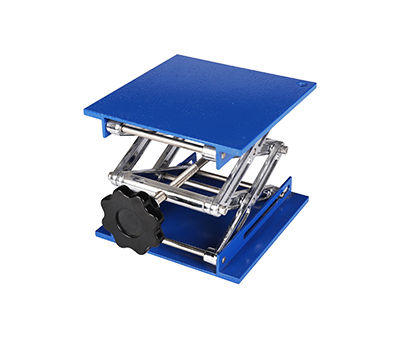

Expected Accessories

Turnkey Package

Frequently Asked Questions

What is the extreme vacuum of this system?


The working vacuum can be around 5Pa, but with a diffusion pump(optional), itr can achieve 0.1 Pa.




What's the capacity?


Short path distillation kit is a batch style distillation equipment. SPD-02N can process 1.3L crude oil per batch; SPD-05N can process 3.3L crude oil per batch; SPD-10N can process 6.5L crude oil per batch; and SPD-20N can process 13L crude oil per batch.




How about the delivery time?


We have regular stock for all models in our factory in China and warehouse in USA. Express delivery will only cost 3 - 7 days for the shipping to you hands.
