Solid-State Bioreactor

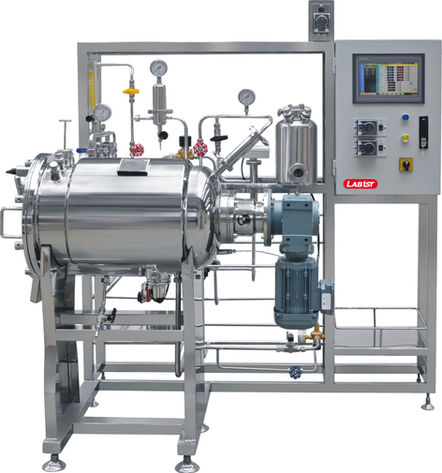

BR500SSB Solid-state Bioreactor

BR500SSB series solid-state bioreactor (SSB), is a type of bioreactor used for the cultivation of microorganisms and the production of various bioproducts on solid substrates in the absence or near absence of free water. These bioreactors are commonly used for processes involving fungi, bacteria, and other microorganisms that can grow on solid materials.

Key Facts ā€‹ā€‹ā€‹ā€‹

ā€‹ā€‹ā€‹ā€‹

  • Efficiency with low moisture, optimal for fungi and certain bacteria.

  • Cost-Effective: Uses inexpensive substrates, often derived from agricultural and industrial waste.

  • High product stability due to the low water activity environment.

Features

User-Friendly Interface

Features a 15-inch touch screen for simplified control and real-time monitoring of the fermentation process to ensure product quality.

Special Stirring System

Utilizes propeller or scraping blades for uniform mixing, with stepless speed regulation and timed forward/reverse operation to optimize fermentation.

Efficient Air Sterilization

With an external air compressor and sterilization system to maintain sterile conditions, ensuring stable microorganism growth.

Automatic sterilization in place (SIP)

Uses external steam for tank sterilization, eliminating the need for additional equipment like steaming pots, thus simplifying operations.

Reliable Hardware

Incorporates Siemens PLC, SEW motor, PT100 temperature electrode, and E+E sensors for accurate and stable operation.

Intelligent PID Control

Manages temperature, humidity, and pressure automatically for optimal fermentation conditions.

Struture

Classification


Horizontal Type


Vertical Type

Model
BR500SSB-5L / 10L / 20L / 30L / 50L / 100L / 200L / 300L / 500L / 1000L / 2000L
Working volume
40-60%
Tank
Horizontal (recommended) or vertical
Diameter-to-height ratio
About 1:1.5
Design pressure
Inner cylinder 0.3 MPa, jacket 0.4 MPa
Working pressure
Inner cylinder 0.25 MPa, jacket 0.3 MPa
Material
Inner cylinder SUS316L, jacket SUS304, fine polishing inside and outside
Cover configuration
1x round sight glass port; 1x lamp port; 1x sampling port; 1x feeding port;
Tank body configuration
1x agitator flange; 1x temperature electrode port; 1x exhaust port, including exhaust condenser and humidity sensor; 1x air inlet; 1x inoculation port; 1x water inlet; 1x water outlet; 1x agitator flange;
Volume
5L, 10L, 20L, 30L, 50L, 100L, 200L, 300L, 500L, 1000L, 2000L...optional

Related Products


Chiller


CIP Station

ē©ŗ压ęœŗ (1).jpg

Air compressor

äø»å›¾ä¾§ (1).png

Steam Generator

Service

Onsite Installation and Trainig

Complete Production and Inspection Process

30+ Years Experience; Experienced Engineers

Customization Capability
