FDG-L Series Laboratory Fractional Distillation Equipment

Product Overview

The FDG-L Series is a versatile, high-performance lab fractional distillation system designed for laboratory R&D, process development, and small-batch purification.
With capacities ranging from 1 L to 20 L, this fractional distillation equipment offers high separation efficiency, excellent chemical compatibility, and operational flexibility. The system is suitable for applications including pharmaceuticals, essential oils, biofuels, and high-purity chemical synthesis.

Capacity

1 - 20 L

Mantle Heating

Fractionating Columns

Up to 380°C

30/35/40mm × 1m
[custom lengths available]

Modular Fractionating Column: Standard fractionating columns are available in 30/35/40 mm diameters with a 1 m height, while customized column lengths can be supplied for specific separation requirements.

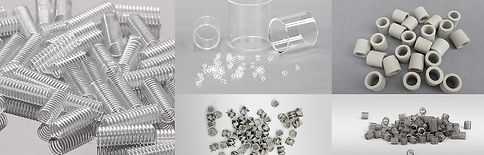

Diverse Packing Options: Compatible with θ-rings, glass springs, Raschig rings, and structured packings for high-purity separation.
Flexible Distillation Setup: Supports both atmospheric and vacuum distillation (≤50Pa), suitable for heat-sensitive materials (e.g., vitamins, essential oils).
High Chemical Compatibility: Constructed with borosilicate glass and PTFE, resistant to acids, alkalis, and organic solvents.
Visual Process Monitoring: The transparent borosilicate glass design allows real-time observation of vapor-liquid flow and packing conditions during the fractional distillation process.
Easy Cleaning: Smooth surfaces minimize residue and cross-contamination risks.

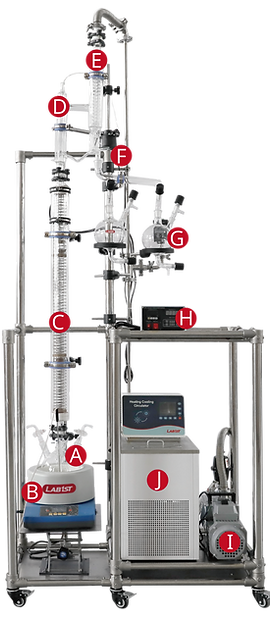

【A】 Boiling Flask

【B】 Heating Mantle

【C】 Distillation Column

【D】 Reflux Head

【E】 Condenser

【F】 Electromagnetic Reflux Valve

【G】 Fraction Collector

【H】 Reflux Ratio Controller

【I】 Vacuum Pump (Optional)

【G】 Heating Cooling Circulator (Optional)

System Upgrades

> Vacuum (silver-plated) insulation layer distillation column + Expansion ring

> Jacket insulation layer distillation column

>PLC control system

> Overhead stirrer + Magnetic coupling seal

> Customized System

Heating cooling circulator

Vacuum controller

High-precision

vacuum gauge

Dry ice cold trap

Dry ice cold trap with chiller

Various packing materials

Vacuum sytem options: rotary vane vacuum pump, corrosion-resistant vacuum pump or dry screw pump

Model	FDG-1L	FDG-2L	FDG-3L	FDG-5L	FDG-10L	FDG-20L
Fraction Collector Capacity (L)	1	1	1	2	2	5
Boiling Flask Size (Liter)	1	2	3	5	10	20
Temperature Range (℃)	RT/+380	RT/+380	RT/+380	RT/+380	RT/+380	RT/+380
Heating Power (w)	530	650	730	1100	2100	3000
Stirring Speed (rpm)	50......1800	50......1800	50......1800	50......1800	50......1800	50......1800
Distillation Column Diameter (mm)	30	30	30	30	30	35
Distillation Column Height (mm)	1000	1000	1000	1000	1000	1000
Condensing Area (㎡)	0.1	0.1	0.1	0.1	0.1	0.1
Fraction Collector Quantity (Qty)	2	2	2	2	2	2
