New Generation & Premium Series
-
The SR600 is Labfirst's flagship jacketed stainless steel reactor specially engineered for robust and efficient operation in general chemical processes. Available from 5 L to 100 L, it is skid-mounted and fully assembled for rapid commissioning.
-
Its signature vessel lifting with swing-out mechanism allows a single operator to perform maintenance safely and efficiently, while the PLC control system and integrated HMI touchscreen centralize control of temperature, agitation speed, and process parameters.
-
Constructed from premium SUS316L stainless steel with PTFE, FFKM, and PPL sealing systems, the SR600 withstands harsh solvent environments while maintaining pharmaceutical-grade cleanliness standards.
Reactor volume
Working Temp. Range
Working Pressure Range
5 - 100 L
-20 / +220 ° C
-0.1 / 0.5 Mpa
Key Features
.jpg)

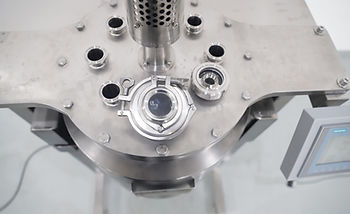

Efficient Vessel Lift
Vessel lifting with controlled ascent and descent enables single-operator maintenance for efficient and convenient handling
.jpg)
Servo-Controlled Agitation
Delivers accurate , smooth speed regulation and improved mixing performance across a wide operating range
.jpg)
Swinging Out Mechanism
Upgraded vessel rotation allows effortless repositioning and easy interior access for cleaning, sampling, or maintenance
.jpg)
SUS316L Corrosion Resistance
Premium SUS316L stainless steel paired with PTFE, FFKM, and PPL seals delivers excellent resistance across aggressive solvents
Siemens PLC & Touch Screen Control
Industrial-grade color touch panel integrates automatic temperature control, agitation control, and process management into a single interface
.jpg)
Precise Thermal Control
Optimized double-jacket design with both heating jacket and insulation layer ensures uniform temperature distribution throughout the reaction volume
Thermal Design Principle
Full Double-Jacket Design with Rock Wool Insulation System
-
The SR600 is Labfirst's flagship jacketed stainless steel reactor specially engineered for robust and efficient operation in general chemical processes. Available from 5 L to 100 L, it is skid-mounted and fully assembled for rapid commissioning.
-
Its signature vessel lifting with swing-out mechanism allows a single operator to perform maintenance safely and efficiently, while the PLC control system and integrated HMI touchscreen centralize control of temperature, agitation speed, and process parameters.
-
Constructed from premium SUS316L stainless steel with PTFE, FFKM, and PPL sealing systems, the SR600 withstands harsh solvent environments while maintaining pharmaceutical-grade cleanliness standards.
Optional Functional Modules
Plug-and-play options for reflux, evaporation, crystallization, and filtration. Economical choice for lab-scale reactions and pilot-scale processing while enabling future expansions.
> Condensation Reflux Module
[A] Integrated reflux condenser
> Evaporation Recovery Module
[B] Condenser
[C] Solvent collection tank
> Crystallization Module
[A] Integrated reflux condenser
[E] Filter
[D] Mother liquor tank
> Multifunctional Module
[B] Condenser
[C] Solvent collection tank
[E] Filter
[D] Mother liquor tank
Technical Specifications
Nominal volume (L) | 5 | 10 | 20 | 30 | 50 | 100 |
Heating area (㎡) | 0.2 | 0.32 | 0.5 | 0.65 | 0.91 | 1.45 |
Volume Below Stirrer (L) | 0.41 | 0.54 | 0.76 | 0.9 | 1.05 | |
Agitator speed (rpm) | 0 - 1000 | 0 - 1000 | 0 - 1000 | 0 - 1000 | 0 - 1000 | 0 - 1000 |
Industries & Applications
Pharmaceutical
API synthesis, intermediate processing, and formulation R&D under strict cGMP and containment requirements
Plant Extraction
Solvent extraction, botanical concentration, and purification workflows with full solvent recovery capability
Chemical Synthesis
Process chemistry, catalytic reactions, polymerization reactions, and scale-up from lab bench to pilot plant
Food, Beverage & Cosmetics
Ingredient processing, mixing, emulsification, fermentation support, and flavor compound development at process scale
Materials Science
Polymer synthesis, coating formulation, and advanced materials R&D processes.
Agrochemical
Pesticide synthesis, herbicide development, and plant protection compound formulation and pilot testing
Upgrade Options
-
Sight Glass
-
Customized Vessel Lid
-
Weighing Module [Mettler Toledo]
-
Surface Treatment: Mirror Polishing, Electrolysis, Passivation, etc.
-
Liquid Level Detection
-
Pneumatic Motor
-
High-torque, High-speed Servo Motor Upgrade
-
Magnetic Drive
-
Material: Duplex 2205, Super Duplex 2507, Hastelloy® C-276, etc.
-
Online Detection and Control
-
High Temperature Version (300℃)
-
Low Temperature Version (-80℃)
-
CIP Cleaning Station
-
Bursting Disc
-
IQ/OQ Documents
-
Certification (CSA/ATEX/IECEx/UL)
