Product Overview
-
LAB1ST glass-type wiped film evaporator, also known as a thin-film evaporator, is designed for efficient separation and concentration of volatile components from heat-sensitive, viscous, and fouling mixtures. Its high-vacuum operation lowers the boiling point, enabling gentle low-temperature evaporation, while the high-speed rotating PTFE wipers create a uniform thin film for rapid heat transfer, short residence times, and reduced thermal degradation.
-
With a customizable evaporation area of 0.1–0.35 m² and a reliable magnetic sealing system for maintaining high vacuum, the unit offers flexible and efficient processing for a wide range of applications.
Evaporation Area
System Operating Vacuum
Heating Temperature
0.1 - 0.35 ㎡
≤0.1 Pa
RT- 250℃
[upgradable to 300℃]
Key Features
High-Vacuum System
The main evaporator wiper uses a magnetic-drive seal, paired with high-vacuum valves and precision ground-glass joints to secure system vacuum and enable low-temperature evaporation
Anti-Blockage Heating Flow
Feed and discharge pipelines come standard with electrical heating-tape tracing to maintain material temperature and flowability, preventing solidification, crystallization, and line blockage
Precision Vacuum Measurement
Equipped with an RO-54 vacuum gauge, it supports multiple selectable vacuum units and delivers fast response, excellent contamination resistance, and high measurement repeatability
Precise Feed Control
The integrated peristaltic pump supports dual control modes (rpm/flow), enabling precise feed-rate control after flow calibration
High-Viscosity Handling
The PTFE wiper offers excellent chemical compatibility and low friction performance, minimizing material adhesion and wall buildup to ensure uniform film formation

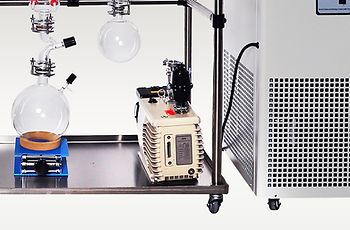

Continuous Discharge
Continuous collection valves with glass receivers allow collection flasks to be replaced and product to be discharged without interrupting system operation, minimizing downtime
01.
Fully Transparent Design: The borosilicate glass 3.3 construction provides clear visibility for real-time process observation.
02.
Space-Saving Footprint: Skid-mounted construction simplifies installation and facilitates system relocation when needed.
03.
Short Residence Time: Single-pass film flow minimizes residence time and thermal exposure, helping protect heat-sensitive products and active ingredients.
04.
Optional PLC Automation: An upgradeable PLC control system supports recipe management, user access control, safety interlocks, and automated process control.
05.
Multistage Evaporation Solution: Modular upgrade options enable customized multistage configurations for different evaporation requirements.
Other Features
Technical Specifications
Model | GWF-100 | GWF-150 | GWF-200 |
|---|---|---|---|
Ethanol Evaporation Rate [L/h] | 6 | 10 | 14 |
Feeding Tank Volume [L] | 2 | 3 | 5 |
Feeding Pump | Peristaltic pump | Gear pump | Peristaltic pump | Gear pump | Peristaltic pump | Gear pump |
Feeding Speed [L/h] | 0.75~15 | 1.25~25 | 1.75~35 |
Film Forming Type | Scraper | Scraper | Scraper |
Evaporator Material | High borosilicate glass | High borosilicate glass | High borosilicate glass |
Evaporation Area [㎡] | 0.1 | 0.25 | 0.35 |
Seal Type | Magnetic seal | Magnetic seal | Magnetic seal |
Agitation Motor [Kw] | 0.12 | 0.12 | 0.12 |
Motor Type | Frequency control | Frequency control | Frequency control |
Condenser Type | Cold Trap | Cold Trap | Cold Trap |
Collection | Glass flask | Glass flask | Glass flask |
Upgrade Options
Feed & Transfer
-
Larger-capacity feed tank
-
Agitated feed tank
-
Feed tank weighing
-
Gear pumps for continuous feeding and discharge
Wiping & Sealing System
-
PTFE roller-type wiper
-
Corrosion-resistant sealing package (PTFE outer sealing ring)
Evaporator & Condenser
-
Main evaporator insulation jacket
-
Cold trap coil assembly
System Configuration
-
Customized frame
-
Additional temperature, vacuum, and flow monitoring points
Automation & Communication
-
RS485 communication interface supporting Modbus RTU protocol
-
PLC + touchscreen control system
Certifications & Documentation
-
ATEX, IECEx, UL, and CSA explosion-proof certifications
-
Material certificates and IQ/OQ documentation
