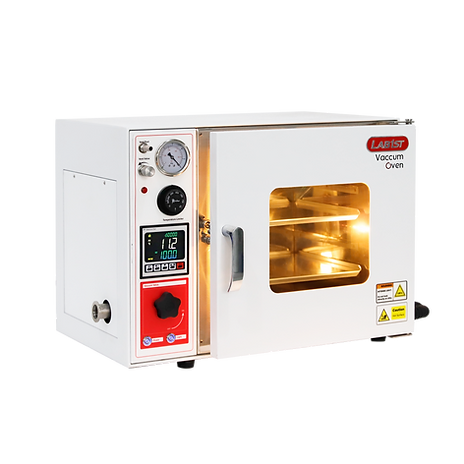

LAB1ST VO-E Series Vacuum Drying Ovens feature an external chamber heating design, providing a versatile and cost-effective solution for drying, heating, and testing under vacuum or inert gas conditions.
With a standard temperature range of up to 200°C and a rectangular stainless steel chamber, these ovens maximize usable space and accommodate flexible shelf configurations, making them ideal for laboratories and industrial applications requiring gentle and uniform heating.
Key Facts
-
Temperature Range: RT+15~200°C
-
Chamber Volume: 23L - 500L
-
Uniform Chamber Heating with Removable Trays
-
Oil-Filled Mechanical Vacuum Gauge
-
With LED Interior Light
-
General drying, heating, and testing
Features
-
4th Generation LCD Temperature Controller: Specially calibrated for vacuum ovens to ensure precise and reliable temperature control.
-
Calibratable Controller with Countdown Timer: Programmable timer from 1 to 9999 minutes for flexible process management.
-
Independent Over-Temperature Protector (with indicator): Prevents overheating and ensures operational safety.
-
LED Interior Light: Provides clear illumination for easy observation of samples.
-
Stainless Steel 304 Interior: Combines aesthetic appeal with long-lasting durability and easy cleaning.
-
Oil-Filled Mechanical Vacuum Gauge: Delivers stable and reliable vacuum measurements.
-
Dedicated Inert Gas Inlet Valve: Allows controlled introduction of nitrogen or other inert gases.
-
Standard KF25 Vacuum Port: Ensures reliable and convenient connection to vacuum systems.
-
Uniform Chamber Heating with Removable Trays: Enables flexible loading configurations and easy operation.
-
Maximized Capacity: Accommodates more trays within the same chamber volume for enhanced productivity.
Specifications
Model | VOS200-60L-HV | VOS200-90L-HV |
|---|---|---|
Environment Temp. | 5 °C ~ 40 °C | |
Display Resolution | 0.1°C | |
Temp. Fluctuation | ±1 °C | |
Ultimate Vacuum | 1.0×10⁻4 Pa | |
Vacuum Display | Electronic type | |
Chamber Material | 316 Stainless Steel | |
Chamber Volume | 64 L | 2.26 cu ft | 91 L | 3.21 cu ft |
Shelves | 2 pcs | 2 pcs |
Heating Method | Chamber Heating | Chamber Heating |
Inner Dimensions (WxDxH, mm) | 400×400×400 | 450×450×450 |
Outer Dimensions (WxDxH, mm) | 600×570×1390 | 610×590×1350 |
Power Input | 3000 W | 3500 W |
Power Supply | AC220V 50Hz | AC220V 50Hz |
Temp. Range | RT+10 °C ~ 200 °C |
Options
-
High-Temperature Heating: 300°C, 400°C, 500°C
-
Digital Vacuum Gauge
-
High Vacuum (<1Pa)
-
PLC Touchscreen Controller (with recipe control, N₂ and vacuum regulation)
-
Vacuum Controller (0.1–100 kPa)
-
Full Stainless Steel Exterior
-
Dust Filter
-
KF25 Stainless Steel Vacuum Hose (1m / 2m)
-
Stainless Steel Cold Trap (Dry Ice or Coil Type)
